Decoding Your Ride: A Guide to Suspension Systems

What is Suspension and Why Does It Matter?

Types of Suspension Systems

Okay, let’s dive into the different types of suspension systems you're likely to encounter. Each design prioritizes different characteristics – comfort, handling, off-road capability, or a balance of all three. Here's a breakdown:

1. Leaf Spring Suspension: This is the oldest and simplest design. Think classic trucks and older cars. Leaf springs are stacks of metal strips (leaves) bolted together. They're durable, inexpensive, and can handle heavy loads. However, they offer a less refined ride compared to modern systems, with more bouncing and less precise handling. They're still used in some heavy-duty applications.

2. Coil Spring Suspension: This is arguably the most common type in modern vehicles. Coil springs are helical springs that compress and rebound to absorb bumps. They offer a more comfortable ride than leaf springs and allow for greater design flexibility. They’re often paired with shock absorbers (dampers) to control spring movement.

3. Torsion Bar Suspension: Rather than a visible spring, torsion bar suspensions use a flexible metal bar that twists to absorb impacts. They offer a good balance of ride comfort and handling, and take up less space than coil springs. You're more likely to find them in trucks and SUVs.

4. MacPherson Strut Suspension: This is a compact and relatively inexpensive design commonly found in front suspensions. It combines the spring and shock absorber into a single unit, reducing space and weight. While cost-effective, it can sometimes compromise handling precision compared to more complex systems.

5. Double Wishbone (or A-Arm) Suspension: Found in performance vehicles and some luxury cars, double wishbone suspension utilizes two wishbone-shaped arms to control wheel movement. This design offers excellent control over wheel geometry, resulting in superior handling and stability. It's more complex and expensive than MacPherson struts.

6. Multi-Link Suspension: A more advanced evolution of double wishbone systems, multi-link suspensions use multiple links to connect the wheel to the chassis. This allows for incredibly precise control over wheel movement and minimizes unwanted body roll. They are often found in luxury cars and high-performance vehicles.

7. Air Suspension: This advanced system uses air springs instead of traditional coil springs. This allows for adjustable ride height and stiffness, often allowing the driver to select different driving modes (comfort, sport, off-road). It offers a luxurious ride and adaptability but is more complex and expensive.

Understanding Key Components

Let's dive into the core parts that make up a suspension system. While designs vary significantly between vehicles (and even within different trims of the same vehicle!), several components appear frequently and play crucial roles. Here’s a breakdown of the major players:

• Springs: These are your primary energy absorbers. They compress and rebound, cushioning the impact from bumps and potholes. Common types include coil springs (found in most modern cars), leaf springs (often used in trucks and older vehicles for their load-carrying capacity), and torsion bars (twisting bars that provide resistance).
• Shock Absorbers (Dampers): Don't be fooled by the name – shock absorbers don’t stop the spring from moving. Instead, they dampen the spring's oscillations. Without them, your car would bounce uncontrollably after hitting a bump. Think of them as controlling the rebound of the spring.
• Struts: A strut is a more complex component than a shock absorber. It combines the shock absorber with the coil spring (or sometimes a torsion bar) into a single unit. Struts provide structural support to the suspension while also handling damping duties. Many front suspensions use struts.
• Control Arms: These are hinged suspension links that connect the vehicle's frame to the wheel hub. They allow the wheel to move up and down while maintaining its position relative to the vehicle's body. Different configurations (like upper and lower control arms) provide different levels of control and flexibility.
• Ball Joints: These are spherical bearings that connect the control arms to the steering knuckles, allowing for steering and suspension movement. They allow for smooth rotation and articulation.
• Stabilizer Bar (Sway Bar): This is a torsion bar designed to resist body roll during cornering. It connects the left and right sides of the suspension, limiting the difference in wheel travel and keeping the vehicle flatter.
• Bushings: Made from rubber or polyurethane, bushings are used in various suspension joints to absorb vibrations and reduce noise. They allow for controlled movement while isolating the chassis from road impacts.

Types of Suspension Systems: A Broad Overview

MacPherson Struts vs. Double Wishbones

When it comes to front suspension, two designs dominate: MacPherson struts and double wishbones. They both achieve the same goal – connecting the wheels to the chassis while allowing for controlled movement – but their approaches and resulting characteristics differ significantly.

MacPherson Struts: Simplicity and Cost-Effectiveness

The MacPherson strut (often just called a “strut”) is arguably the most common front suspension system on the road. It’s a single, integrated unit containing the shock absorber and coil spring. This simplicity translates to lower manufacturing costs and compact design, making it ideal for smaller, more budget-conscious vehicles.

Pros of MacPherson Struts:

• Cost-effective: Simpler design means lower production costs.
• Compact: Excellent for vehicles with limited space.
• Good responsiveness: Offers a direct feel for steering input.
• Relatively simple to maintain.

Cons of MacPherson Struts:

• Limited wheel travel: Can compromise comfort over rough roads.
• More sensitive to road imperfections: Less precise handling on uneven surfaces.
• Potential for bump steer: Changes in wheel angle during suspension travel.
• Compromised geometry: Achieving optimal suspension geometry can be challenging.

Double Wishbones: Precision and Performance

Double wishbone (or A-arm) suspension, on the other hand, utilizes two wishbone-shaped arms (upper and lower) to connect the wheel hub to the chassis. This configuration allows for greater control over wheel movement and camber (the angle of the wheel relative to the road). It's frequently found in higher-performance vehicles and those prioritizing ride quality.

Pros of Double Wishbones:

• Superior geometry control: Allows for precise control of camber, caster, and toe.
• Improved ride quality: Better absorption of road imperfections.
• Better handling performance: More predictable and stable cornering.
• Greater wheel travel: Allows for more compliant suspension movement.

Cons of Double Wishbones:

• More complex and expensive: Requires more parts and intricate design.
• Larger footprint: Takes up more space in the engine bay.
• More complicated to maintain.

Ultimately, the best suspension system depends on the vehicle's intended use. MacPherson struts offer a cost-effective solution for everyday driving, while double wishbones provide a more refined and capable experience for those seeking higher performance or enhanced ride comfort.

Leaf Springs, Coil Springs, and Torsion Bars

Let's delve into three common suspension types: leaf springs, coil springs, and torsion bars. Each operates on a different principle to absorb bumps and keep your tires in contact with the road.

Leaf Springs: These are the granddaddies of suspension. Imagine a stack of layered metal strips (the leaves) bolted together. They're historically prevalent in trucks and older vehicles, known for their robustness and ability to handle heavy loads. The springiness comes from the bending of these leaves. While effective for payload, leaf springs can sometimes be harsher riding and less refined in handling compared to other options. They’re also typically less tunable.

Coil Springs: These are probably what you picture when you think of a car’s suspension. A coil spring is simply a tightly wound metal rod that compresses and rebounds to absorb impacts. They offer a more comfortable ride than leaf springs and generally allow for lower vehicle heights, contributing to improved handling. Coil springs are also fairly simple and reliable, which keeps maintenance costs relatively low. They're incredibly versatile and found in everything from economy cars to high-performance machines.

Torsion Bars: A less common, but still relevant, option. Torsion bars are long metal bars that twist to absorb energy. They’ve become somewhat rarer, but you’ll still find them in some vehicles, particularly those prioritizing adjustable ride height. Unlike leaf or coil springs, the spring rate isn’t directly related to the bar’s length; it’s determined by its thickness and how much it’s twisted. This offers a unique flexibility for tuning, but they can be more complex to adjust and repair.

Air Suspension: Comfort and Control

Air suspension, as the name suggests, uses air springs instead of traditional coil springs or leaf springs. These air springs are essentially flexible bags filled with compressed air. An air compressor maintains the desired air pressure within these bags, and electronic sensors constantly monitor ride height and damping characteristics. This allows for a remarkably adjustable ride.

The Advantages:

• Adjustable Ride Height: This is arguably air suspension’s biggest draw. You can raise the vehicle for off-road clearance or lower it for improved aerodynamics and a sportier stance. Many systems allow automatic height adjustments based on load or driving conditions.
• Superior Comfort: Air springs offer a smoother ride compared to traditional springs, as they can better absorb bumps and road imperfections. The ability to adjust pressure also allows for fine-tuning the ride based on preference.
• Load Leveling: Air suspension automatically adjusts to maintain a consistent ride height regardless of the load being carried. This prevents sagging and ensures optimal handling and stability.
• Improved Handling: Modern air suspension systems often incorporate adaptive dampers that adjust their stiffness based on driving conditions. This delivers a balance of comfort and control.

The Downsides:

• Complexity: Air suspension systems are more complex than traditional systems, which means more potential points of failure and potentially higher repair costs.
• Cost: Air suspension is typically a premium option and adds to the initial cost of the vehicle.
• Maintenance: While generally reliable, air suspension components require periodic maintenance, such as checking for leaks and replacing components as needed.
• Air Compressor Noise: Some air compressors can produce a noticeable hum or whirring sound, especially when adjusting ride height.

Adaptive Suspension: Responding to the Road

Forget fixed settings – adaptive suspension takes vehicle handling to a whole new level. These systems don't just absorb bumps; they actively respond to changing road conditions and driving styles. How? It’s a clever blend of sensors, computer processors, and adjustable dampers (shock absorbers).

Think of it this way: a traditional suspension setup is a compromise, tuned for a general range of driving conditions. Adaptive suspension, however, allows the vehicle to prioritize comfort or performance, often at the touch of a button or even automatically.

Here's a glimpse of how it works:

• Sensors: The system uses a network of sensors – wheel speed sensors, accelerometers (measuring acceleration), and sometimes even cameras – to monitor factors like vehicle speed, steering angle, braking force, and road surface irregularities.
• ECU Brainpower: This data is fed into an Electronic Control Unit (ECU), essentially the brain of the system. The ECU analyzes this information in real-time.
• Damping Adjustment: Based on the ECU's calculations, it sends signals to electronically controlled dampers. These dampers can adjust their stiffness – how much they resist compression and rebound – on the fly. Softer for comfort over rough roads, firmer for cornering.

Types of Adaptive Systems:

• Magnetic Ride Control (MRC): This common system uses magneto-rheological (MR) fluid within the dampers. An electric current changes the fluid’s viscosity, instantly altering the damping force.
• Air Suspension with Adaptive Damping: Combines the ride height adjustability of air suspension with electronically controlled dampers for even greater versatility.
• Continuously Variable Damping (CVD): Offers a wider range of damping adjustments than traditional systems, allowing for a smoother transition between comfort and performance.

Benefits of Adaptive Suspension:

• Improved Ride Comfort: Softer damping over bumps and potholes.
• Enhanced Handling: Firmer damping for more precise cornering and reduced body roll.
• Increased Versatility: Adapts to various driving conditions and driver preferences.
• Potential for Automatic Adjustment: Many systems adjust automatically based on driving behavior and road conditions.

Adaptive suspension isn’t just about luxury; it's about optimizing the driving experience and pushing the boundaries of vehicle performance.

Independent vs. Dependent Suspension

Understanding the Core Difference

At their heart, suspension systems boil down to a fundamental choice: independent or solid axle. These two approaches represent vastly different philosophies about how a vehicle handles bumps, maintains contact with the road, and transmits forces.

A solid axle system, common in older vehicles, trucks, and off-road machines, connects both wheels on an axle to a single, rigid axle housing. This means that when one wheel encounters a bump or dips, it directly affects the other. This provides robust durability and excellent articulation – the ability for the wheels to move independently to maintain ground contact over uneven terrain. It's simpler to build, strong, and generally cheaper. However, the linked nature of the wheels can result in less precise handling, as the movement of one wheel can unsettle the other and affect the vehicle's overall balance.

Independent suspension, found on most modern passenger vehicles, uses separate mounting points for each wheel. This means one wheel's movement doesn’t directly influence the other. Designs vary widely (we’ll get into those later!), but the key is that they allow each wheel to react to bumps independently. This leads to a smoother ride, improved handling, and better stability, especially during cornering. However, independent systems are often more complex, more expensive to manufacture, and sometimes (though less commonly now) offer slightly less robustness than solid axles, especially in extreme off-road conditions.

The choice between these two is a crucial design decision, impacting everything from on-road comfort to off-road capability.

Common Independent Suspension Types: MacPherson Strut, Double Wishbone, Multi-Link

MacPherson Strut: Simplicity and Cost-Effectiveness

The MacPherson strut, also known as a strut suspension, is arguably the most common suspension system found in modern vehicles, particularly in front suspensions. Its popularity stems from its relatively simple design and its ability to provide a good balance between performance, cost, and space efficiency.

So, what makes it work? A MacPherson strut combines the shock absorber and coil spring into a single unit. This unit is mounted directly to the vehicle's chassis and the steering knuckle, which holds the wheel hub and bearings. The strut acts as both a damper (absorbing bumps) and a spring, providing the necessary vertical movement. A separate lower control arm, usually a wishbone shape, provides lateral stability and manages wheel camber.

Advantages:

• Cost-Effective: The reduced number of components significantly lowers manufacturing costs, translating to a more affordable vehicle.
• Compact Design: The integrated design frees up space in the engine bay, allowing for a more compact overall vehicle footprint.
• Simple Maintenance: Fewer parts generally mean simpler and less frequent maintenance.
• Good Handling (Generally): While not as sophisticated as double wishbone systems, MacPherson struts can provide decent handling characteristics, especially when properly tuned.

Disadvantages:

• Limited Wheel Travel: Compared to some other systems, MacPherson struts often have less wheel travel, which can affect ride comfort on rough roads.
• Potential for Noise: Due to the direct mounting of the strut to the chassis, some road noise and vibrations can be transmitted into the vehicle.
• Ride Quality Compromises: Achieving a truly luxurious ride can be challenging with a MacPherson strut setup due to the inherent stiffness required for good handling.

Despite these limitations, the MacPherson strut remains a workhorse in the automotive world, proving its worth through its affordability and practicality.

Double Wishbone: Performance and Control

The double wishbone suspension, often lauded as the gold standard, is favored in high-performance vehicles and increasingly found in everyday cars seeking enhanced handling. Unlike simpler setups, double wishbone utilizes two wishbone-shaped arms – one upper and one lower – connecting the wheel hub to the vehicle's chassis. This configuration offers a significant advantage: it allows for much more precise control over wheel movement.

Here's why double wishbone shines:

• Geometry Control: The angles of the wheel (camber, caster, and toe) remain remarkably stable throughout suspension travel. This means the tire maintains optimal contact with the road, maximizing grip and predictable handling even during cornering and braking.
• Reduced Body Roll: The independent movement of each wheel minimizes body roll, keeping the vehicle flatter and more stable.
• Improved Ride Comfort (when designed correctly): While traditionally associated with stiffness, a well-engineered double wishbone system can provide a surprisingly comfortable ride by allowing for better damping and absorption of bumps.
• Higher Complexity & Cost: This advanced design is inherently more complex to manufacture and install, contributing to higher vehicle costs compared to simpler suspension types.

Double wishbone is a favorite among engineers who prioritize responsiveness and predictable handling characteristics. From sports cars to luxury SUVs, its presence speaks volumes about the manufacturer's commitment to performance and control.

Multi-Link: Sophistication and Refinement

Multi-link suspension, sometimes called independent multi-link (IML), represents a significant leap in suspension complexity and performance. Unlike simpler designs like MacPherson struts, multi-link systems utilize multiple arms (typically three to five) to connect the wheel hub to the vehicle’s chassis. Each arm operates independently, allowing for greater control over wheel movement and minimizing unwanted influences on other suspension components.

This intricate design allows engineers to precisely tune numerous parameters, including camber, caster, toe, and roll center. You'll often find multi-link systems in higher-end vehicles – from luxury sedans and sports cars to modern SUVs – because they offer a superior ride quality and handling experience. They excel at absorbing bumps while maintaining better tire contact with the road, resulting in improved cornering stability and reduced body roll.

While offering considerable benefits, multi-link systems are more complex to manufacture and repair, typically resulting in higher costs. The increased number of components also contributes to greater weight, though advancements in materials are continuously mitigating this drawback. Ultimately, multi-link suspension provides a balanced approach – offering a sophisticated blend of comfort, control, and performance.

Dependent Suspension: Leaf Springs and Solid Axles

The History and Evolution of Leaf Springs

Leaf springs are arguably the oldest continuously used suspension system in automotive history, and their longevity speaks volumes about their effectiveness and adaptability. Their origins can be traced back to horse-drawn carriages in the 16th century, where multiple layers of metal strips (leaves) were used to provide a relatively comfortable ride compared to rigid axles.

The concept migrated to early automobiles in the late 1890s and early 1900s, rapidly becoming the standard for trucks and heavier vehicles due to their simplicity, robustness, and ability to handle significant loads. Early leaf spring designs were quite rudimentary: simple stacks of metal leaves held together by a master leaf and typically clamped at the ends. The flexibility of the stack determined the suspension's softness.

Over time, improvements focused on refining the design to balance load-carrying capacity and ride comfort. Multi-leaf springs became common, with varying leaf thicknesses and lengths to optimize performance. Techniques like taper-leaf designs (where leaves narrow towards the ends) were introduced to reduce weight and improve articulation. Full floating leaf springs, where the spring pack is attached to the axle and chassis separately, also evolved, providing greater axle articulation and reducing stress on the chassis.

While coil springs and other more sophisticated systems have largely supplanted leaf springs in passenger cars, they remain a cornerstone of heavy-duty applications like trucks, SUVs, and trailers where their strength and load-bearing capabilities are invaluable. Modern leaf spring designs continue to incorporate advancements like parabolic leaf springs (thicker in the center and tapered towards the ends for improved ride quality) and composite leaf springs, demonstrating their continuing relevance in the evolution of automotive suspension.

Solid Axles: Durability and Off-Road Capability

Solid axle suspension systems, sometimes referred to as live axles, are a classic design, primarily found on trucks, SUVs, and off-road vehicles. Unlike independent suspension systems where each wheel moves independently, a solid axle connects both wheels on an axle shaft. This means they must move together. While this might seem like a limitation, it's the very foundation of their legendary strength and off-road prowess.

Why are they so tough? The axle housing itself is a robust, rigid component, designed to withstand incredible forces – think rocks, ruts, and significant impacts. The unified design eliminates ball joints and other moving parts (common in independent suspensions) that can be points of failure under extreme stress. This makes solid axles inherently more durable and less prone to breakage, especially when tackling challenging terrain.

Off-Road Benefits: That axle shaft and the connected wheels inherently lock together, giving you superior traction. When one wheel loses grip, the other can continue to propel the vehicle forward – a huge advantage in mud, sand, or on uneven surfaces. The solid connection also provides a more predictable and stable feel when traversing obstacles. Finally, solid axles generally offer a higher lift potential, allowing for larger tires and increased ground clearance, further enhancing off-road capability.

Trade-offs: The rigidity of a solid axle also contributes to a less comfortable on-road ride compared to independent systems. The interconnected wheels transmit bumps and vibrations directly into the cabin. They also generally result in a wider vehicle and a less precise steering feel. However, for those prioritizing durability, traction, and serious off-road performance, the benefits of a solid axle often outweigh these drawbacks.

Key Suspension Components: Springs, Shock Absorbers, Linkages

Understanding Spring Types: Coil, Leaf, and Torsion

Springs are the unsung heroes of your vehicle’s ride quality. They’re the primary component responsible for absorbing bumps and ensuring a relatively smooth journey. While the overall system is complex, understanding the different types of springs – coil, leaf, and torsion – is a crucial first step. Let's break them down:

Coil Springs: These are the most common type found in modern vehicles, particularly in passenger cars and SUVs. They're essentially wound metal tubes, offering a compact design and excellent ride comfort. Their flexibility is determined by their thickness, coil diameter, and the steel used. Coil springs excel at absorbing vertical impacts and are relatively simple to manufacture and maintain. You’ll often find them paired with shock absorbers or struts to control the spring's oscillations.

Leaf Springs: A hallmark of older trucks and heavier-duty vehicles, leaf springs are comprised of multiple layers (leaves) of steel stacked on top of each other and bolted together. They offer a robust and durable solution, capable of handling significant loads. The leaves work together to distribute weight and provide stability. While traditionally offering a stiffer ride than coil springs, modern leaf spring designs incorporate features like staggered leaf ends and rubber isolators to improve comfort.

Torsion Springs: Less common than coil or leaf springs, torsion springs use rotational force to store and release energy. They consist of a bar that is twisted and then released. They're often found in older European vehicles or used as part of a more complex suspension design. Torsion bars provide a good compromise between ride comfort and handling but can be more complex to adjust and maintain.

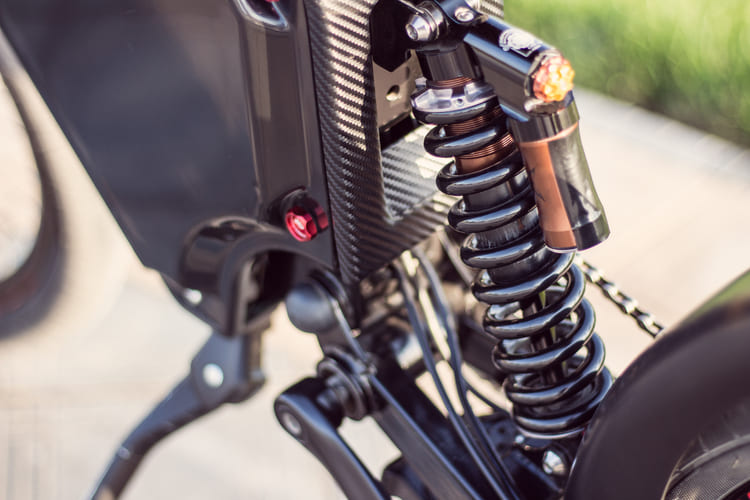

How Shock Absorbers Control Motion and Improve Handling

Think of your car’s springs. They’re fantastic at absorbing bumps, but they’re too good. Without something to counteract their action, your car would continue bouncing long after you hit a pothole, making for a very uncomfortable ride and seriously compromised handling. That's where shock absorbers (also often called dampers) come in.

Shock absorbers aren't actually absorbing anything; they’re controlling the movement of the springs. They do this using a piston moving within a cylinder filled with hydraulic fluid (usually oil). As the suspension moves – when a wheel encounters a bump or dip – the piston moves through the fluid, forcing it through small openings (called orifices). This creates friction, which resists the movement of the suspension.

The degree of resistance is key. A stiffer shock absorber restricts movement more, resulting in a firmer ride and better control in high-performance driving situations. These are often found in sports cars and performance vehicles. Conversely, softer shock absorbers allow for more suspension travel and a smoother ride, common in comfort-oriented vehicles.

Here's a breakdown of what shock absorbers do for your car's performance:

• Reduce Bouncing: Prevents excessive bouncing after hitting bumps.
• Improve Tire Contact: Keeps the tires in consistent contact with the road surface, maximizing traction for braking, acceleration, and cornering.
• Enhance Stability: Reduces body roll during turns and improves overall vehicle stability.
• Control Body Dive: Minimizes the nose dive during braking.

Understanding how shock absorbers work is crucial to appreciating the nuances of your vehicle's handling and ride quality.

Air Suspension: Comfort and Customization

The Basics of Air Suspension

Air suspension systems represent a significant departure from traditional coil spring and shock absorber setups. Instead of steel springs, they utilize inflatable air bladders (also known as air springs) to support the vehicle's weight. These air springs are connected to an air compressor, a reservoir to store compressed air, and a control system – often electronic – that allows for adjustable ride height and damping.

Here's a breakdown of how it works:

• Air Springs: These rubber or fabric bags are filled with compressed air, acting as the spring element. The more air pressure, the higher the spring rate (stiffer ride).
• Air Compressor: This unit replenishes air into the system, maintaining the desired pressure in the air springs.
• Air Reservoir: Acts as a buffer, storing compressed air and preventing the compressor from constantly running.
• Control System: This is where the smarts come in. Electronic control systems, often integrated with the vehicle’s computer, allow the driver (or the system itself) to adjust ride height, stiffness, and damping characteristics in real-time. This can be based on driving mode selection (e.g., comfort, sport), load sensing, or even road conditions.

Benefits of Air Suspension:

• Adjustable Ride Height: Allows for a lower stance for improved aerodynamics and aesthetics, or increased ground clearance for off-road use.
• Self-Leveling: Maintains a consistent ride height regardless of load, ensuring a comfortable and stable ride even with a full car and cargo.
• Improved Ride Comfort: Offers a smoother, more compliant ride by allowing for precise damping control.
• Adaptive Damping: The ability to change the damping rate (how quickly the shock absorbs bumps) on the fly, for optimal performance in various conditions.

Downsides to Consider:

• Complexity: Air suspension systems are more complex than traditional systems, potentially leading to more maintenance and repairs.
• Cost: Initial cost is higher due to the advanced components and sophisticated control systems.
• Potential Reliability Issues: While generally reliable, air springs and compressors can be susceptible to leaks and failures.

Benefits Beyond Comfort: Performance and Control

While a smooth, comfortable ride is a huge perk of a good suspension system, the benefits extend far beyond simply absorbing bumps. Suspension plays a critical role in vehicle handling, stability, and overall performance. Think of it this way: your tires are the only things connecting your car to the road. If those tires are bouncing around uncontrollably, they lose contact with the pavement, diminishing traction.

A well-tuned suspension keeps your tires planted. This translates to:

• Improved Handling: Precise steering response and quicker cornering are hallmarks of a suspension that effectively controls body roll and minimizes unwanted movement.
• Enhanced Braking: When braking hard, a stable suspension prevents nose-diving and maintains tire contact, leading to shorter stopping distances.
• Increased Stability: Especially important in adverse weather conditions or when towing, a good suspension keeps your vehicle stable and predictable, reducing the risk of skidding or loss of control.
• Better Traction: Whether you're accelerating on a slippery surface or navigating rough terrain, a responsive suspension maximizes grip, delivering improved performance and confidence.
• Optimized Weight Transfer: A properly designed system manages weight transfer during acceleration, braking, and cornering, maximizing the efficiency of the power being delivered to the wheels.

Essentially, your suspension is the unsung hero working tirelessly to ensure your vehicle performs at its best, regardless of the road conditions.

Air Suspension Components Explained

Okay, let's break down the key players in an air suspension system. It's more than just an air spring – several components work together to provide that adjustable ride height and comfortable ride.

• Air Springs (Bellows): These are the heart of the system. Instead of traditional coil or leaf springs, air springs are rubberized fabric bellows filled with compressed air. They act as the primary load-bearing component, absorbing bumps and providing ride comfort. Their firmness is directly related to the air pressure inside. Different designs exist, including single-convolution, multi-convolution, and roll-stabilized air springs, each offering slightly different performance characteristics.

• Air Compressor: This is what keeps the system pressurized. It's typically an electric pump, often mounted in the engine bay or trunk, and it refills the air reservoir when air is used to raise the vehicle or compensate for leaks. Compressor capacity (measured in CFM - cubic feet per minute) is crucial for the system's ability to respond quickly to height adjustments.

• Air Reservoir (Tank): This acts as a buffer, storing compressed air to provide an immediate supply to the air springs. A larger reservoir means quicker adjustments and reduced strain on the compressor.

• Ride Height Sensors: These sensors constantly monitor the vehicle's ride height at each corner. They send data to the control unit, allowing the system to maintain the desired height. Various types exist, including ultrasonic, pneumatic, and potentiometer-based systems.

• Control Unit (Air Suspension Control Module – ASCM): This is the brain of the system. It receives input from the ride height sensors, driver commands (if applicable, like a height adjustment button), and other vehicle systems (like speed or load), and then controls the compressor and vent valves to regulate air pressure in the springs.

• Vent Valves (Pressure Relief Valves): These valves release air from the air springs, allowing the vehicle to lower. The control unit opens and closes these valves to achieve the desired ride height.

• Air Lines & Fittings: These high-pressure hoses and fittings connect all the components, delivering air throughout the system. Leak-proof connections are essential for proper operation.

Understanding these components is a huge first step in appreciating how air suspension works and what might be going wrong if you're experiencing issues.

Maintenance and Potential Issues

Like any complex mechanical system, your suspension isn’t invincible. Regular maintenance and being aware of potential issues will keep your ride smooth, safe, and prevent costly repairs down the line.

Routine Checks & Maintenance:

• Visual Inspection: Regularly check for signs of damage like cracks, leaks, or excessive corrosion on shock absorbers, struts, and springs. Pay attention to rubber bushings – cracking or deterioration indicates wear.
• Fluid Levels (If Applicable): Some suspension systems, particularly those with active or adaptive features, utilize hydraulic fluid. Check the reservoir level regularly and top up as needed (refer to your owner's manual).
• Alignment: Misalignment due to impacts or general wear and tear can dramatically affect handling and tire wear. Get your alignment checked and adjusted periodically (typically every 60,000 miles or after hitting a major pothole).
• Bushing Replacement: Rubber bushings degrade over time. Replacing them restores proper suspension articulation and reduces noise and vibration.
• Shock/Strut Replacement: Shock absorbers and struts typically last 50,000 to 100,000 miles, but this varies based on driving conditions. Signs of needing replacement include excessive bouncing after hitting bumps, a floaty or unstable feeling, and uneven tire wear.

Potential Issues to Watch For:

• Noises: Clunking, squeaking, or rattling noises while driving can indicate loose components, worn bushings, or failing shocks/struts.
• Bouncing/Floating: Excessive bouncing after hitting bumps, or a floating sensation, suggests worn or failing shock absorbers.
• Uneven Tire Wear: If one tire is wearing out significantly faster than the others, it could be a sign of suspension misalignment or failing components.
• Pulling to One Side: This is a serious issue that needs immediate attention. It suggests a suspension problem affecting wheel alignment or component failure.
• Leaks: Fluid leaks from shocks or struts are a clear indication of failure and require immediate replacement.

Early detection and preventative maintenance are key. If you're unsure about diagnosing or repairing suspension issues, it's always best to consult a qualified mechanic.

Adaptive Suspension: Responding to the Road

Types of Adaptive Systems

Adaptive suspension systems go beyond simply absorbing bumps; they actively adjust to changing road conditions and driving styles. Here’s a breakdown of the most common types:

1. Magnetorheological (MR) Dampers: Often hailed as the gold standard, MR dampers utilize a fluid containing tiny iron particles. When an electric current is applied, these particles align, changing the fluid's viscosity—effectively stiffening or softening the damper in milliseconds. This allows for incredibly precise control, offering a comfortable ride in normal conditions and enhanced stability during aggressive cornering or braking. Think of it as a continuously variable damper.

2. Air Suspension: Air suspension replaces traditional coil springs with air springs—bellows filled with compressed air. An onboard air compressor allows the system to adjust ride height and spring rate based on vehicle load, road conditions, and driver mode selection. You’ll often see air suspension in luxury SUVs and high-performance vehicles where both comfort and load-carrying capability are crucial. Some advanced systems can even automatically level the vehicle when carrying a heavy load.

3. Semi-Active Dampers (Variable Damping): These systems don't change the internal structure of the damper itself like MR dampers. Instead, they adjust the damping force (how quickly the damper extends or compresses) using electronically controlled valves. Sensors constantly monitor vehicle behavior, and the ECU adjusts the valve settings to optimize ride quality and handling. They are often a more cost-effective alternative to full adaptive systems.

4. Active Suspension (Predictive Suspension): Representing the cutting edge, active suspension systems utilize actuators (like hydraulic cylinders or electric motors) to actively push or pull the vehicle’s body, effectively decoupling it from road imperfections. This allows for a remarkably flat and stable ride, even over very rough surfaces. Predictive systems often use GPS and road mapping data to anticipate bumps and proactively adjust the suspension before the vehicle encounters them, although these are still relatively rare due to complexity and cost.

Benefits and Drawbacks

Every suspension system, from the simplest leaf spring to the most complex air ride setup, brings a unique blend of advantages and disadvantages to the table. Let's break them down:

Leaf Springs:

• Benefits: Historically reliable, relatively inexpensive to manufacture and repair, capable of handling heavy loads, simple design.
• Drawbacks: Can be harsh riding, prone to noise and vibration, less precise handling compared to independent systems, limited articulation.

Coil Springs:

• Benefits: Improved ride comfort compared to leaf springs, better handling characteristics, allow for more sophisticated damping systems.
• Drawbacks: Can be more expensive than leaf springs, may not handle extremely heavy loads as effectively (without modification), require more complex mounting.

Torsion Bars:

• Benefits: Space-saving design, adjustable ride height (in some cases), generally robust.
• Drawbacks: Can suffer from corrosion over time, potential for noise and vibration, limited travel compared to some other systems.

MacPherson Struts:

• Benefits: Compact and relatively inexpensive to manufacture, common in front suspensions due to space efficiency.
• Drawbacks: Can be noisy, limited travel, compromises handling compared to double wishbone systems.

Double Wishbone (A-Arm):

• Benefits: Excellent handling characteristics, allows for precise control over wheel movement, improved traction.
• Drawbacks: More complex design and more expensive to manufacture, takes up more space, typically found in higher-end vehicles.

Air Suspension:

• Benefits: Adjustable ride height, customizable ride comfort, allows for load-leveling, improved handling in certain situations.
• Drawbacks: Complex system requiring electronic control, potential for air leaks and component failure, more expensive to repair.

Understanding these trade-offs will help you appreciate the engineering behind your vehicle's suspension and potentially guide you towards modifications or upgrades that suit your specific needs and preferences.

Suspension Tuning: Stiffening and Softening

Understanding Damping Rates

Damping, often overlooked, is arguably the critical element in controlling a suspension's performance. It’s all about controlling the speed at which the suspension compresses and rebounds. Think of it like this: your springs are responsible for absorbing bumps – but damping is what prevents that energy from bouncing you around uncontrollably.

Dampers (also commonly called shock absorbers or shocks) are the components responsible for damping. They use friction – typically involving hydraulic fluid being forced through tiny orifices – to slow down the spring's movement. The rate at which a damper restricts this motion is the “damping rate.”

Why Does Damping Rate Matter?

• Too Little Damping: Imagine bouncing relentlessly after hitting a bump. That's what happens with insufficient damping. The vehicle loses traction, handling suffers, and comfort is negatively impacted (despite the spring theoretically absorbing the impact).
• Too Much Damping: While preventing bouncy, excessive damping can make the ride feel harsh, jarring, and less compliant over uneven surfaces. It can also limit the suspension's ability to react quickly to changes in the road.
• Just Right: The ideal damping rate provides a controlled, comfortable ride while maintaining excellent handling and traction. It allows the suspension to react effectively to changing road conditions without excessive motion.

Different Types of Damping:

• Fixed Damping: The most common type, found on many standard vehicles. The damping rate is pre-set and doesn't change.
• Adjustable Damping: Found on performance vehicles and some higher-end aftermarket systems. Allows drivers to alter the damping rate, allowing for customization based on driving conditions and preferences. Adjustments can range from simple rebound/compression dials to sophisticated electronically controlled systems.
• Frequency Selective Damping (FSD): A more advanced system that automatically adjusts damping rates based on the frequency of the road input. It provides more damping for high-frequency bumps (like potholes) while allowing low-frequency bumps to be absorbed more easily.

Understanding damping rates is key to appreciating the nuances of suspension performance – and potentially choosing the right suspension components for your driving needs.

Spring Rate Adjustments

Beyond damping, the spring rate itself plays a crucial role in how your suspension reacts. Spring rate refers to the force required to compress a spring a specific distance – essentially, how stiff it feels. Higher spring rates mean a stiffer ride; lower spring rates mean a softer, more compliant ride.

Most modern vehicles don't offer readily adjustable spring rates. However, some performance vehicles, off-road rigs, and motorcycles utilize systems allowing drivers to fine-tune them. Here's a breakdown of how these adjustments work and what to consider:

• Coilover Shocks/Struts: These units combine the shock absorber and spring into one adjustable assembly. Turning a knob or using electronic controls allows you to change the spring preload (the initial compression of the spring) or, in some advanced systems, alter the spring rate directly.
• Air Suspension: This technology uses air-filled bladders instead of traditional springs. Air pressure within these bladders dictates the spring rate; more pressure means a stiffer ride. This offers incredible versatility for adjusting ride height and spring rate on the fly.
• Progressive Springs: These springs are designed with varying wire diameters or coil spacing, making them softer initially for comfort and stiffer as they compress further for better support during aggressive maneuvers. They don't offer manual adjustment but provide a compromise between soft and firm.

Considerations:

• Driving Style: A softer spring rate is better for comfortable cruising and handling rough roads. A stiffer rate improves handling and reduces body roll during spirited driving.
• Vehicle Weight: Heavier vehicles generally require higher spring rates to prevent excessive sagging and maintain proper handling.
• Track Use: For track days, stiffer spring rates are generally preferred for improved stability and responsiveness.
• Experimentation: If your vehicle allows for adjustments, experimentation is key. Small changes can have a significant impact on ride quality and handling. Always make changes incrementally and test thoroughly.

Fine-Tuning for Specific Terrain

Your suspension isn't a one-size-fits-all solution. What works beautifully on a smooth highway will be a nightmare on a rocky trail, and vice versa. Thankfully, most modern suspension systems offer a degree of adjustability designed to tailor performance to the conditions you’re facing. Let's break down how you can tweak things:

1. Compression Damping: This controls how quickly your suspension compresses (when you hit a bump).
* Softer Compression: Great for rough, technical terrain. It allows the suspension to absorb impacts more readily, improving comfort and traction. However, too soft can lead to wallowing on faster sections. * Stiffer Compression: Ideal for smoother, faster roads or when carrying heavy loads. It minimizes body roll and keeps the vehicle feeling controlled, but can make a rough ride even harsher.

2. Rebound Damping: This controls how quickly the suspension extends after compression. * Slower Rebound: Useful for tackling consecutive bumps. It prevents the suspension from bouncing excessively between impacts, maintaining contact with the ground. * Faster Rebound: Best for smoother roads and helps the vehicle settle quickly after a bump, improving handling precision.

3. Ride Height Adjustment (if equipped): Some suspensions allow you to raise or lower the vehicle's ride height. This directly affects ground clearance and body roll.
* Raising Ride Height: Increases ground clearance for off-roading, but can negatively impact on-road handling. * Lowering Ride Height: Improves on-road handling and aesthetics, but reduces ground clearance.

Terrain-Specific Recommendations:

• Rock Crawling: Soft compression, moderate rebound, often raised ride height (if adjustable).
• Desert Running: Softer compression (to absorb repeated impacts), faster rebound (to settle quickly), moderate ride height.
• Forest Roads: Moderate compression and rebound, stock or slightly raised ride height.
• Highway Driving: Stiffer compression, faster rebound, stock ride height.

Important Note: Always start with small adjustments and test them in a safe environment. Consult your suspension's manual for specific adjustment ranges and recommended settings. Improper adjustments can negatively impact vehicle handling and safety.

Signs of Suspension Problems & What to Look For

Bouncing and Excessive Body Roll

Ever felt like your car is a bouncy castle after hitting a bump, or felt it leaning dramatically when cornering? That's likely a symptom of issues with your suspension system. While a little movement is normal – it’s what allows your tires to maintain contact with the road – excessive bouncing and body roll (the leaning motion) indicate something isn't working as it should.

Why Does it Happen?

• Worn-out Shock Absorbers (or Struts): These are responsible for damping (controlling) the spring's movement. When they wear out, they lose their ability to dampen those oscillations, leading to a bouncy ride. Think of them as the brakes for your springs.
• Sagging Springs: Springs provide support for the vehicle’s weight. Over time, they can lose their stiffness, causing the vehicle to sit lower and increasing body roll.
• Incorrect Spring Rates: While less common for standard vehicles, incorrect spring rates (often a result of aftermarket modifications) can exacerbate body roll. Too-soft springs will allow more lean.
• Worn Bushings: Bushings are rubber or polyurethane components that isolate suspension parts and absorb vibrations. When they degrade, you're more likely to feel every bump and experience more body roll.
• Tire Pressure: Surprisingly, incorrect tire pressure can contribute to a harsher ride and perceived instability. Underinflated tires amplify bumps.

What Can You Do?

If you're experiencing excessive bouncing or body roll, it's time for an inspection. A mechanic can assess the condition of your shocks, springs, bushings, and other suspension components. Replacing worn parts will restore your vehicle's handling and ride comfort, and significantly improve safety. Ignoring these issues can lead to uneven tire wear, decreased braking performance, and a generally unpleasant driving experience.

Unusual Noises: Clunking, Squeaking, and More

Your suspension isn't silent, but unusual noises are a clear sign something isn’t right. Ignoring them can lead to bigger, more expensive problems down the line. Let's break down some common sounds and what they might indicate:

Clunking: This is often the most concerning. It typically happens when going over bumps or during turns. A clunking sound often points to loose or worn components. Here's a breakdown:

• Sway Bar Links: These are a frequent culprit. They connect the sway bar to the suspension and are prone to wear, especially in areas with a lot of potholes or rough roads.
• Ball Joints: A loose ball joint can create a clunking sensation and a knocking sound when turning. This is a safety concern and needs immediate attention.
• Strut Mounts: The mounts that secure your struts to the vehicle can degrade, resulting in a clunking sound, especially at lower speeds.
• Control Arm Bushings: These rubber bushings absorb vibrations and allow movement. When they wear out, you’re likely to hear a clunk.

Squeaking: A high-pitched squeak is often related to friction.

• Bushings (again!): Dry or worn bushings can squeak. A small amount of lubricant can sometimes temporarily alleviate the noise, but replacement is ultimately recommended.
• Springs: Although less common, a squeak can sometimes be caused by the springs rubbing against the surrounding components.
• Strut/Shock Absorber Seals: A failing seal can lead to debris and moisture entering, causing a squeaking sound.

Knocking: A distinct knocking sound usually indicates a more serious issue, often involving metal-on-metal contact. This warrants an immediate inspection by a qualified mechanic.

Rattling: A rattling sound can be trickier to pinpoint. It might stem from loose suspension components, worn-out sway bar links, or even something as simple as a loose exhaust hanger near the suspension.

Important Note: Diagnosing suspension noises can be tricky. What sounds like one issue might be masking another. If you're hearing unusual noises, it’s always best to have your vehicle inspected by a professional to ensure accurate diagnosis and proper repair.

Steering Issues and Uneven Tire Wear

Suspension isn't just about a comfortable ride; it plays a critical role in how your car handles and how long your tires last. When your suspension is compromised, it directly impacts your steering and tire wear patterns.

How Suspension Affects Steering:

• Pulling: If your car consistently pulls to one side, it's often a suspension issue. Misaligned camber (the angle of your tires relative to vertical) is a common culprit. Unevenly worn ball joints, tie rod ends, or worn bushings can also contribute, causing the steering to feel vague or heavy.
• Vagueness/Imprecision: A suspension that’s shot can make the steering feel mushy or unresponsive. This is often due to worn-out components like shock absorbers or struts, which don't effectively control the vehicle's movements.
• Steering Wheel Vibration: While vibration can stem from various issues, worn suspension components (especially ball joints and tie rod ends) can transmit vibrations to the steering wheel, creating an unsettling feeling.

Uneven Tire Wear: A Visual Cue

Your tires are the first line of contact with the road, and they “tell” you a lot about your car’s health. Uneven wear is a huge warning sign. Here's what to look for and what it might indicate:

• Edge Wear: Indicates excessive negative camber. This often happens when the suspension is out of alignment or experiencing premature wear on components like upper control arms.
• Center Wear: Suggests underinflation or aggressive braking. While it’s not solely a suspension problem, it can be exacerbated by a sagging or sagging suspension.
• Heel/Toe Wear: This can point to issues with toe angle—the direction the tires point relative to each other. Misaligned toe is often a result of worn tie rod ends or incorrect alignment settings.
• Cupping/Scalloping: These wavy patterns on the tire surface are frequently caused by worn shock absorbers or struts. They indicate that the tires aren't being dampened properly, leading to bouncing and irregular wear.

Addressing these suspension issues promptly will not only improve your driving experience but also extend the lifespan of your tires and enhance your car’s safety.

Maintaining Your Suspension: A Simple Guide

Spotting the Signs of Wear

Even the best suspension systems aren't immune to the effects of time, mileage, and road conditions. Recognizing the warning signs early can save you from costly repairs and ensure a comfortable, safe ride. Here's what to look out for:

• Bouncy Ride: Excessive bouncing after hitting a bump is a classic sign. While a little bounce is normal, consistently over-bouncing indicates worn shock absorbers or struts.
• Uneven Tire Wear: Look for wear patterns like cupping (circular depressions) or feathering on your tires. This can stem from misaligned suspension components or worn bushings.
• Pulling to One Side: If your vehicle consistently pulls to one side while driving straight, it could be due to a suspension issue impacting wheel alignment.
• Noises: Clunking, squeaking, or rattling sounds when driving over bumps or turning could indicate worn ball joints, tie rods, bushings, or other components. Don't ignore these – they're a direct line to potential problems.
• Fluid Leaks: Look for puddles of fluid under your car, especially after it's been parked. Leaks from struts or shocks are often visible.
• Steering Issues: Difficulty steering, a wandering feeling, or excessive play in the steering wheel can be related to suspension problems.
• Dashboard Warning Lights: While not always specific, a check engine or suspension warning light should be investigated promptly.

If you notice any of these signs, it's best to have your suspension inspected by a qualified mechanic.

Basic Maintenance Checks

Keeping an eye on your suspension isn't just about chasing a comfortable ride; it's about safety and longevity. Thankfully, many basic checks are things you can do yourself with minimal tools. Here's a breakdown of what to look for:

• Visual Inspection: Regularly (at least monthly, or before long trips) walk around your vehicle and look for obvious signs of trouble. Look for:
  • Leaks: Oil or fluid puddles under your wheels. Different suspension types use different fluids, so the color and viscosity can offer clues to the source of a leak.
  • Damage: Check for cracked bushings, torn boots on ball joints or tie rod ends, and any bent or broken components. Even small cracks can indicate weakness.
  • Uneven Tire Wear: This can be a strong indicator of alignment issues stemming from a suspension problem. Cupping, feathering, or excessive wear on one side of the tire are red flags.
• Bounce Test: A classic! Push down firmly on each corner of the vehicle, then release. The vehicle should rebound and settle quickly, typically over one or two bounces. Excessive bouncing indicates worn shocks or struts. Be cautious – don't do this near traffic!
• Steering Feel: Pay attention to how your car feels when you steer. A vague or wandering feeling, or excessive play in the steering wheel, can point to issues with tie rods, ball joints, or even power steering components connected to the suspension.
• Noises: Listen for unusual noises while driving. Clunking, rattling, or squeaking sounds can pinpoint failing components. While some noises can be difficult to diagnose without expertise, noting them is important.

Important Note: If you're unsure about any of these checks, or if you suspect a serious problem, it's always best to consult a qualified mechanic. Neglecting suspension problems can lead to costly repairs and, more importantly, compromise your safety.
